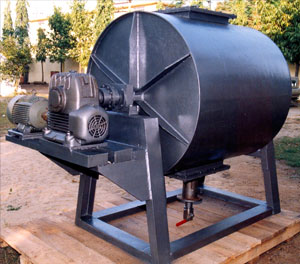

 Steel
Ball Mills
|
|
| |
 |
These ball mills are suggested
for applications wherein metal /iron contamination
is permissible. The main difference between steel
ball mill & porcelain ball mill is the difference
in grinding media used. In steel ball mill, EN
31,EN 8, SS 304, SS 316 grade balls of upto 125
mm diameter are used
These mills run from 2 feet
to 10 feet diameter and can be jacketed for cooling
or heating. These are noted for their simple operation,
low maintenance and consistent results. Units
come in a variety of drive arrangements for either
wet or dry milling
|
|
| |
|
Model No.
|
Inside Dimensions
|
Total Vol. Of
|
Typical Mill RPM
|
Steel
|
|
Steel Ball Mills (Lits)
|
Ball Charge
|
|
Dia.
|
Length
|
|
Dry
|
Wet
|
50% full (Kgs)
|
|
BM-15X21
|
15"
|
21"
|
73
|
44
|
41
|
136
|
|
BM-18X24
|
18"
|
24"
|
118
|
41
|
38
|
238
|
|
BM-21X28
|
21"
|
28"
|
191
|
37
|
34
|
381
|
|
BM-24X30
|
24"
|
30"
|
268
|
36
|
33
|
531
|
|
BM-24X36
|
24"
|
36"
|
318
|
36
|
33
|
633
|
|
BM-32X24
|
32"
|
24"
|
377
|
31
|
28
|
749
|
|
BM-32X36
|
32"
|
36"
|
568
|
31
|
28
|
1,144
|
|
BM-37X48
|
37"
|
48"
|
1,014
|
28
|
26
|
2,029
|
|
BM-42X48
|
42"
|
48"
|
1,305
|
25
|
23
|
2,608
|
|
BM-45X48
|
45"
|
48"
|
1,500
|
24
|
22
|
2,996
|
|
BM-48X60
|
48"
|
60"
|
2,137
|
22
|
20
|
4,277
|
|
BM-54X48
|
54"
|
48"
|
2,164
|
21
|
19
|
4,324
|
|
BM-54X60
|
54"
|
60"
|
2,700
|
21
|
19
|
5,407
|
|
BM-60X48
|
60"
|
48"
|
2,669
|
19
|
17
|
5,339
|
|
BM-60X60
|
60"
|
60"
|
3,337
|
19
|
17
|
6,674
|
|
BM-60X72
|
60"
|
72"
|
4,014
|
19
|
17
|
8,036
|
|
BM-62X72
|
62"
|
72"
|
3,837
|
19
|
17
|
8,535
|
|
BM-72X60
|
72"
|
60"
|
4,805
|
17
|
15
|
9,625
|
|
BM-72X72
|
72"
|
72"
|
5,769
|
17
|
15
|
11,532
|
|
BM-72X96
|
72"
|
96"
|
7,692
|
17
|
15
|
15,391
|
|
BM-72X108
|
72"
|
108"
|
8,651
|
17
|
15
|
17,343
|
|
BM-72X120
|
72"
|
120"
|
9,638
|
17
|
15
|
19,250
|
|
| |
| |
|
|
| |
|
|
|
| |
|
